HEATFLOW Portable diesel heater device with black and orange design on a white background

Heatflow portable diesel heater

Name: Heatflow portable diesel heater
Brand: Totalcool
SKU: HF01
Price: 799.00 GBP
Availability: InStock

£799.00

PRE-ORDER AVAILABLE SOON!

Keep warm anywhere, built to be outside.

IP33 Rated
5kw heater
Made in Britain
8-15W Whilst running
115W Peak power draw

View Specifications

View Frequently Asked Questions

Sale Ends In

00 Days

00 Hours

00 Minutes

00 Seconds

Features

Controller:

CO Sensor (Auto shutdown if the CO limit is exceeded for a set time)
Auto altitude adjustment adjusts fuel mixture to current altitude
Manual temperature mode set the temperature
Auto temperature mode set the temperature, and the heater will maintain the set temperature
Manual fuel pump priming function
Countdown timer –
On-off timer
Bluetooth Mobile App
(contains countdown timer, fan-only mode, fuel level estimation, 24/7
on-off schedule timer)
Remote key fob

Product Statistics

5kw Heater
Front and rear LED
Backlight fuel level gauge
Security D Shackle
IP33 Rated for outdoor use
Quiet fuel pump
5L Fuel capacity
Bluetooth Mobile App
Remote key fob

Dimensions

Unit Body

L 412mm / W 212mm / H 286mm

Unit with Exhaust cover

L 412mm / W 269mm / H 286mm

Weight (empty): 10KG

Camping scene with people around a campfire, Heatflow Diesel heater visible.

if you’ve got power, the Heatflow’s got heat.

Choose Heatflow, Strict British manufacturing standards, with rigorous testing for electrical, fuel, and exhaust safety. Features such as a fully enclosed design, heat shielding, and carbon monoxide monitoring help prevent accidents

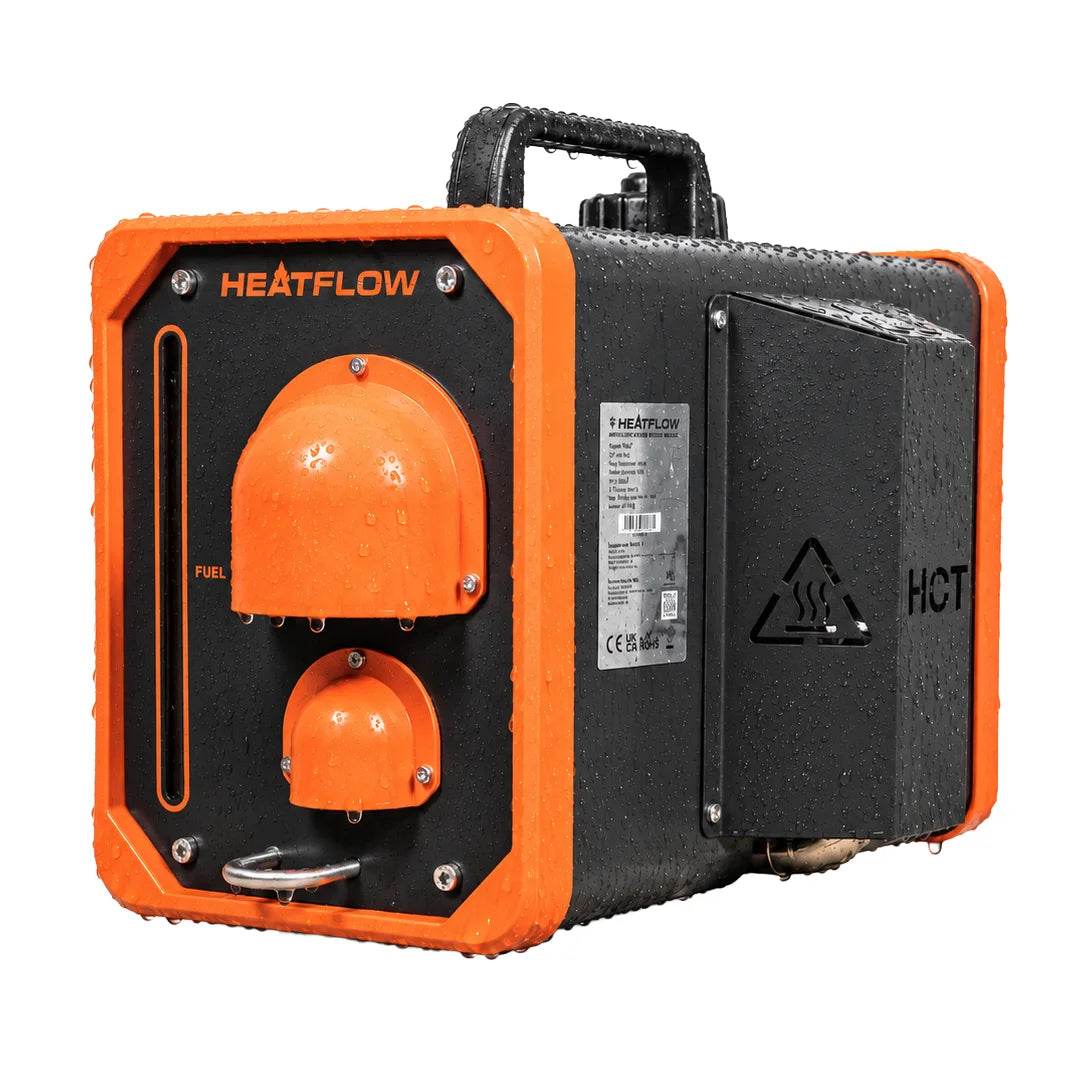

IP 33 Rated, Built to be outside

Keep warm, exhaust fume free

The Heatflow is built to handle whatever the outdoors throws its way. Leave it outside where it’s meant to be while it delivers a steady flow of clean, powerful heat wherever you need it. Unlike most diesel heaters, the Heatflow is purpose-built for outdoor use, eliminating many of the risks that come with bringing heat indoors.

12/24V DC and Mains AC Compatibility

Versatile Power Options

Power the Heatflow wherever you are. Running on 12V, 24V, or a mains connection, it’s ready to fire up and deliver reliable warmth in seconds. Campsites or workshops it doesn't matter.

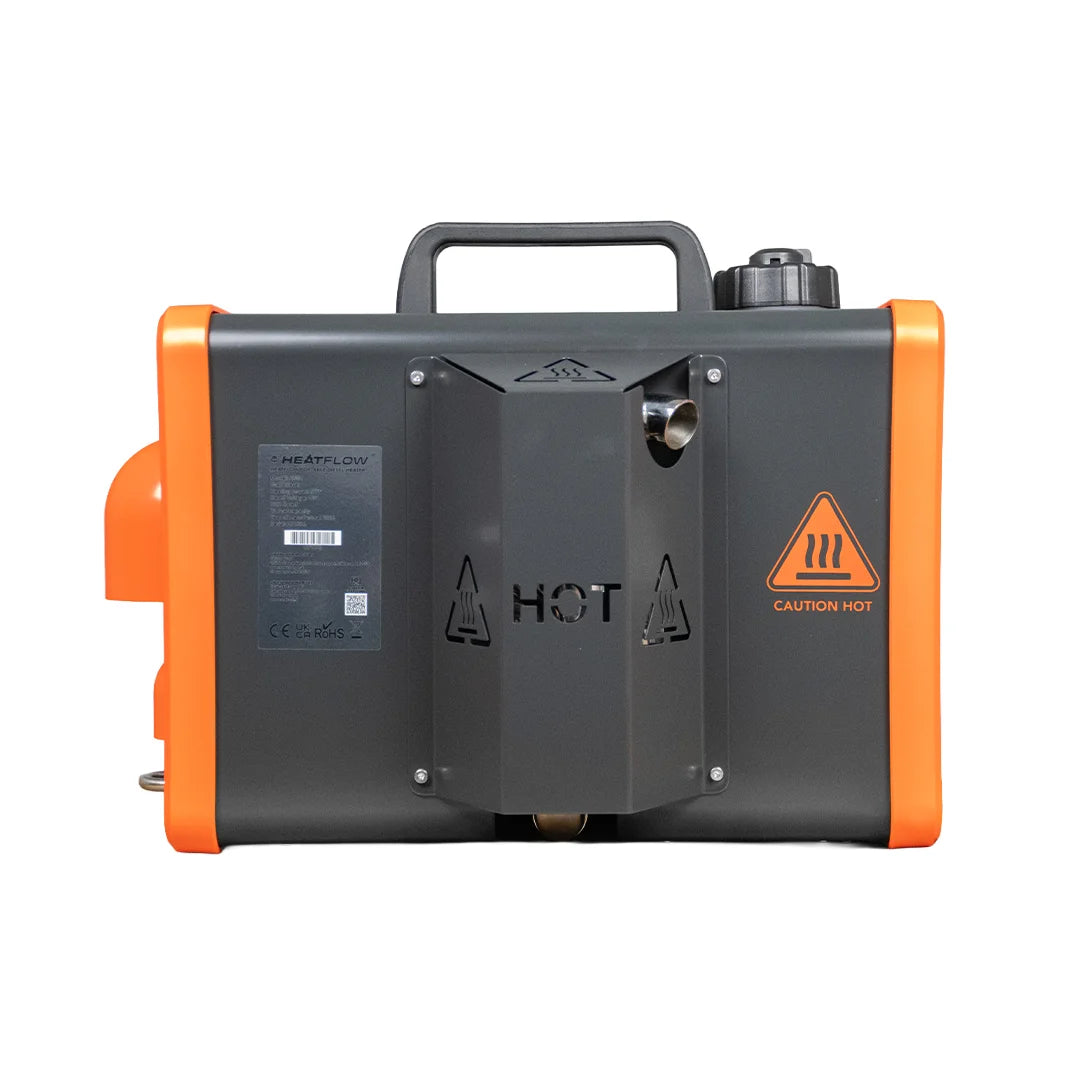

Heat-shielded exhaust panel

Protect yourself and the surroundings

The Heatflow’s side-mounted exhaust is fitted with heat shielding to prevent accidental contact and burns. Its elevated exhaust outlet keeps hot gases away from the ground, reducing the risk of fires and protecting nearby wildlife. No need for make shift exhaust kits.

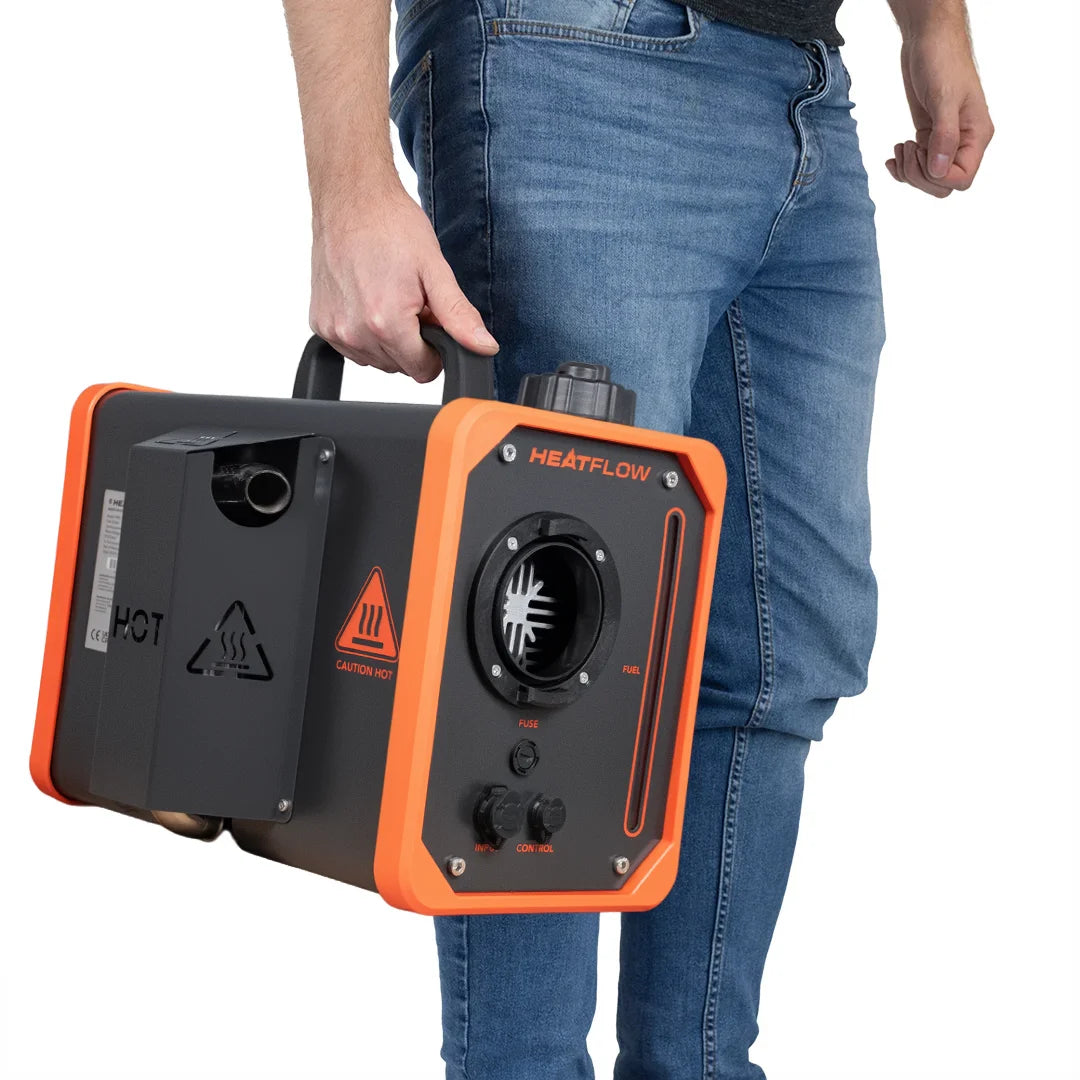

Chassis-reinforced carry handle

Easy to pack, easy to unpack

The Heatflow has a strong, centre-mounted handle that’s fixed directly to the internal chassis for reliable support. The handle makes it easy to lift, move, and position the unit, whether you’re setting up at a campsite, workshop, or job site. Its solid mounting ensures nothing comes loose, even with regular use.

Magnet mountable controller

A controller you can't lose

The wired controller gives you full control of your Heatflow from startup to shutdown. It tracks key information including temperature, altitude, timer settings, CO alarm status, and estimated fuel levels, so you always know how your system is performing. For added convenience, the Heatflow also comes with a Bluetooth remote and app compatibility, allowing you to adjust and monitor settings from your phone.

Built in Britain

Made with you in mind

The Heatflow is designed and built in Britain to deliver dependable quality and reliability. Each unit is produced under strict British manufacturing standards, with careful attention to durability and performance in outdoor conditions. Manufacturing locally also allows for shorter supply chains, tighter quality control, and straightforward access to customer support and spare parts.

Heatflow Specifications

The Heatflow is built to be strong and practical. Its steel body, low power use, and solid parts make it ready for real-world use. It’s light, dependable, and simple to look after, so you can count on it wherever you go.

Construction

Outer-shell: Powder coated, Folded steel

Impact resistant edging: Flame retardant ASA

D-Shackle: Reinforced Steel connected to inner chassis

Carry handle: Nylon build, connected to inner chassis

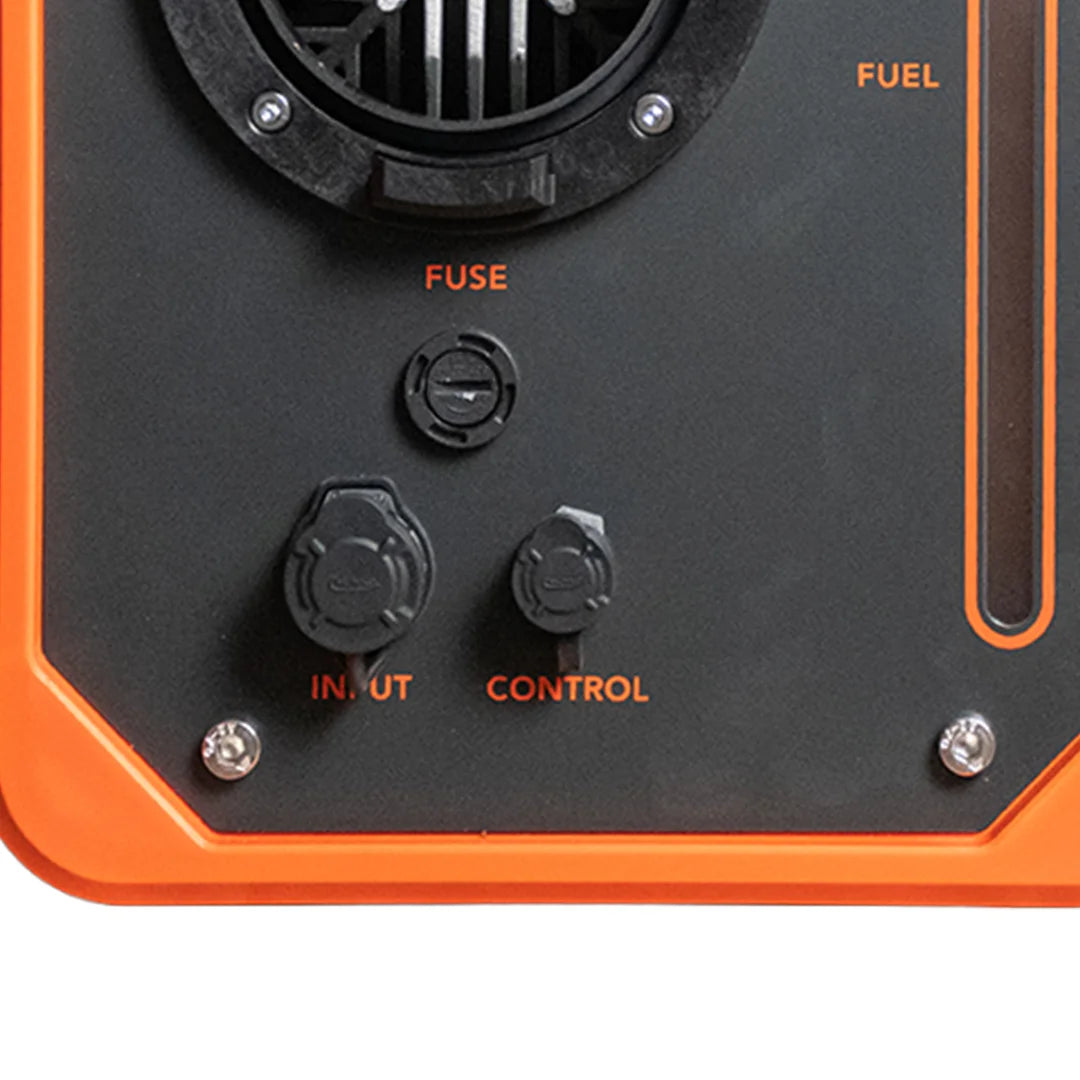

Input / Output

Control input port: 3 Pin LP-12 IP68 Waterproof connector

FAQS

How long will this Diesel heater run on a full tank?

On a full tank the Heatflow will run for an approximate 20 Hours. The Heatflow uses 0.25L per hour of diesel fuel.

How do I operate my Diesel Heater?

Using the included controller or available APP view our User guide for any further information

Do I have to keep my Diesel heater outdoors?

The HEATFLOW should only be operated in spaces with adequate ventilation, it's designed to be operated outdoors with rain resistance. For experienced DIY users, the HEATFLOW could be fitted elsewhere providing it has an adequate exhaust. Dismantling your HEATFLOW voids your warranty.

How long is the warranty period for my HEATFLOW?

Totalcool offer a 3 Year warranty on the HEATFLOW Diesel heater.

How portable is the HEATFLOW Diesel heater?

The HEATFLOW has a sturdy centre fit handle and weighs in at 10kg when the tank is empty, making it very easy to move from place to place.

Can I move my HEATFLOW after it's been operating?

Your HEATFLOW can be moved after operation but it's important to keep the exhaust facing away from your body to avoid burns. Once air ducting has been removed after operation be careful not to press exposed heater to any person(s).

Can I move my HEATFLOW during operation?

We don't recommend moving the HEATFLOW during operation to ensure everything continues to run smoothly. However there is no issue repositioning it as long as safety precautions are taken to not touch hot-zones.

Do I need to worry about pressure build-up?

You do not need to worry about any pressure build-up within the HEATFLOW fuel tank thanks to the pressure-release fuel cap.

How do I secure my HEATFLOW outdoors?

Using the Chassis-reinforced D-Link visible a chain can be attached and connected to any other immovable object e.g. Car wheels or Tent poles.

How much fuel do I have left?

The backlit fuel window is a good indicator of current fuel level and the control app provides an estimated reading based on time in use since last re-fuel
